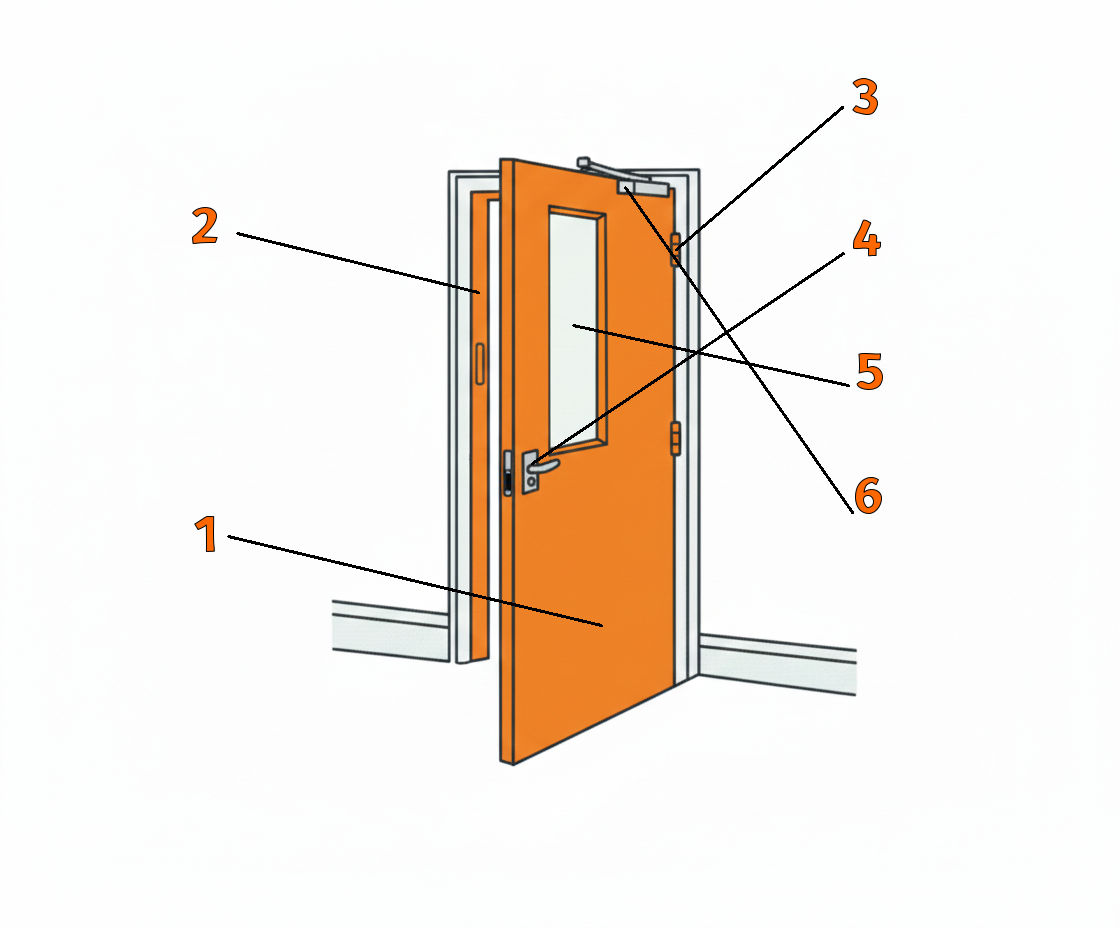

The anatomy of a fire door.

  • The main body of the door is called the door leaf. It must be undamaged and with a suitable fire rating. As well as fitted to ensure correct gap between door and frame when closed.

  • The structure that holds the assembly in place. It must be a fire tested design, compatible with the door leaf and securely fitted with correct fixings and fire proof material in any gaps.

  • Hinges fasten the door to the frame in order for it to operate. In fire door sets, there should be at least 3 hinges fitted with the correct fixings, in the correct place as detailed in the fire certificate.

  • Other fire door hardware such as lock sets, push/pull plates and handles must be appropriately rated for the door fire rating and if it’s a certified door set must be approved in the field of application.

  • Fire Door Glazing uses specialised fire rated glass to maintain visibility and fire integrity of the doorset.

  • Crucial components to a fire door sets performance are intumescent seals - Which expand under heat creating a sealed barrier around the door leaf.

  • Suitable for use on the specific fire door, a door closer’s purpose is to ensure the door closes snugly against the frame and is easy to operate.

  • Air transfer grilles help maintain air circulation in a compartment. They must at a minimum be intumescent when used in a fire door set however sometimes specialist electronic fire and smoke rated grilles are required.

  • Mandatory Signage such as “Fire Door Keep Shut” needs to be fitted in the correct location and have the correct design.
